SunBank Installation

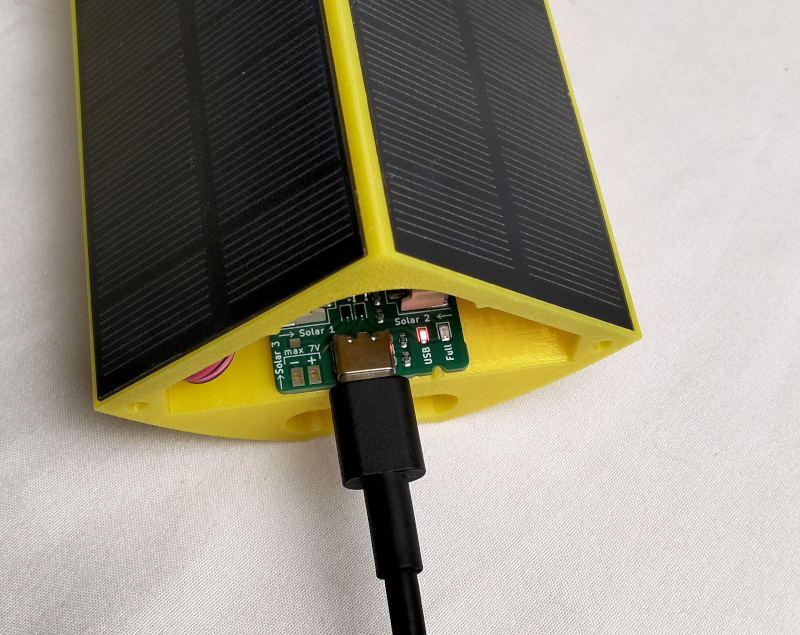

Initial Charging​

Before outdoor installation, fully charge the battery via the USB-C port. The green LED indicates when charging is complete. A full charging cycle can take up to 8 hours.

Initial charging via USB-C

Mast Installation​

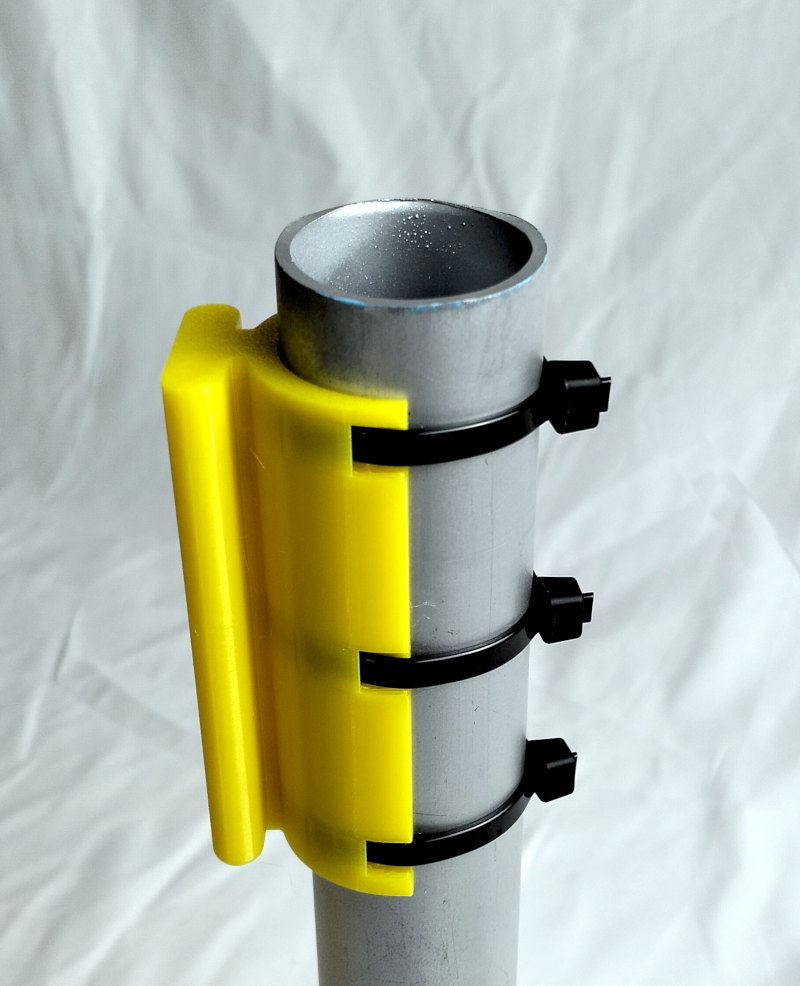

1. Attach the Dock with Zip Ties​

Secure the mast dock to the mast using zip ties.

Attach with zip tie

2. Set the Orientation​

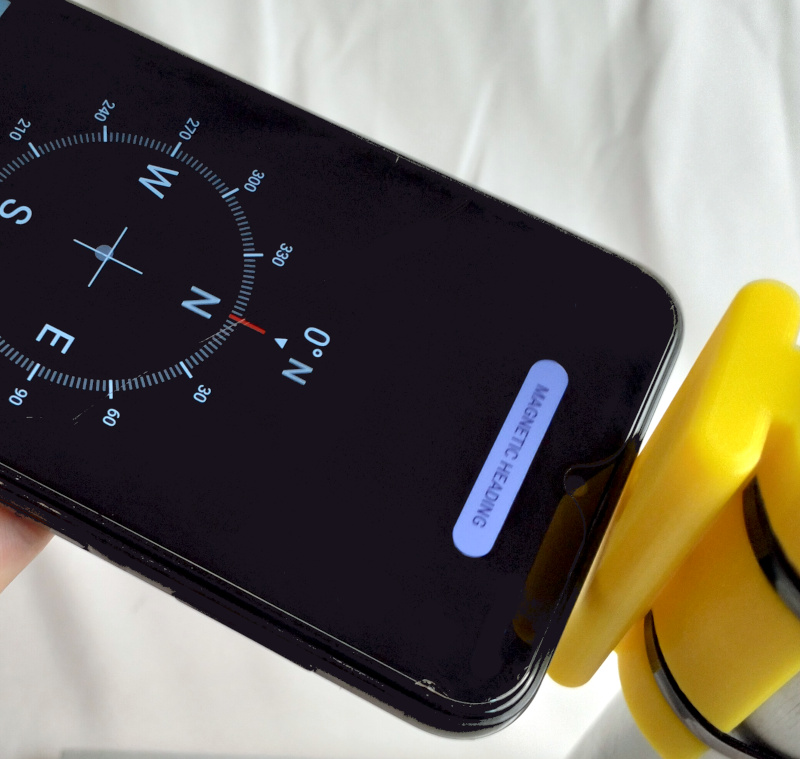

Orient the dock toward the south using a compass.
If you are in the southern hemisphere, orient it toward the north.

Orient with a compass

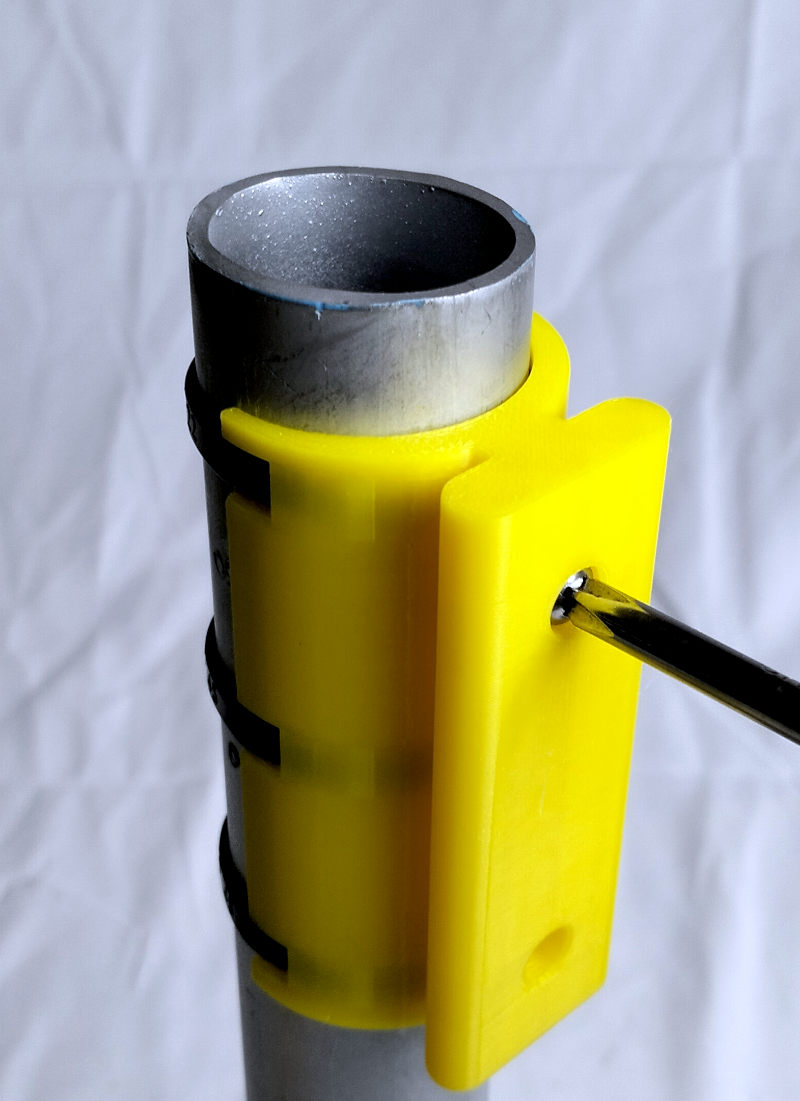

3. Secure the Position​

Insert and lightly tighten the anti-rotation set screw to prevent the dock from turning.

Tighten anti rotation screw

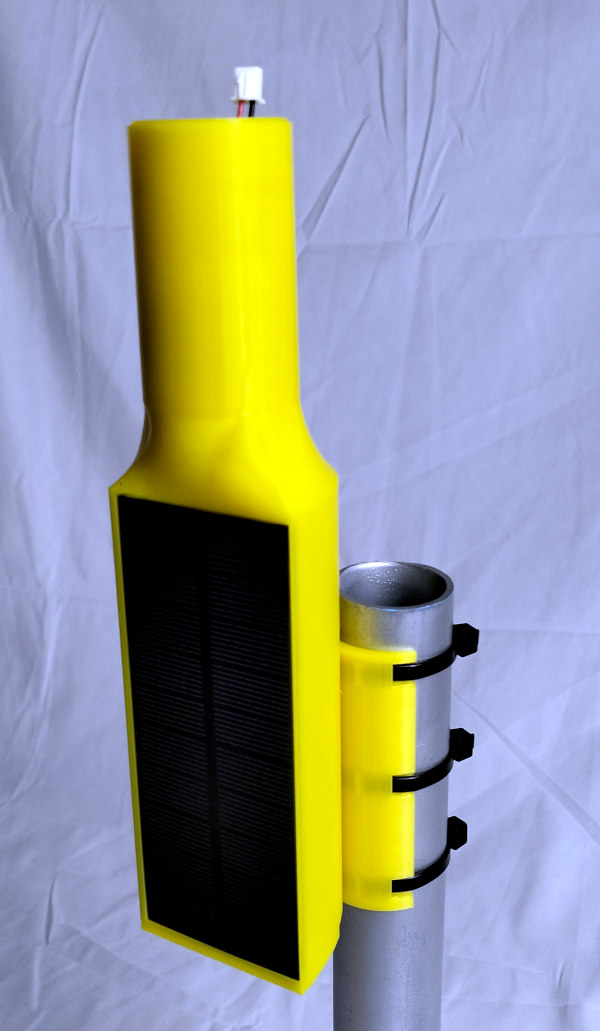

4. Mount the Solar Body​

Insert the solar body onto the dock.

dock-the-solar-body
