Receptacle 3D Printing

The receptacle is the base the anemometer head sits on. Choose the variant that matches your installation:

Top Mast Mount	Side Mast Mount	Sunbank
For a power-wired board. Sits neatly on top of the mast, in any diameter from 10 to 50 mm. The cable can run inside the mast.	For a power-wired board. Fits on the side of the mast, one part covering 20 to 50 mm. The cable runs alongside the mast.	For an anemometer powered by a Sunbank solar base.

Top Mast Mount

Material: PETG  ·  Print time: 2h30  ·  Filament: 50 g

Select the version that matches your mast diameter, or adjust the dimensions in FreeCAD using the provided guide.

Mast Diameter	Printing Settings	File
10 mm	Standard	1-top-mast-mount-10mm.stl
20 mm	Standard	1-top-mast-mount-20mm.stl
32 mm	Standard	1-top-mast-mount-32mm.stl
34 mm	Standard	1-top-mast-mount-34mm.stl
40 mm	Standard	1-top-mast-mount-40mm.stl
42 mm	Standard	1-top-mast-mount-42mm.stl
48 mm	Standard	1-top-mast-mount-48mm.stl
50 mm	Standard	1-top-mast-mount-50mm.stl

Side Mast Mount

Material: PETG  ·  Print time: 2h45  ·  Filament: 47 g

Part Number	View	Printing Settings	File

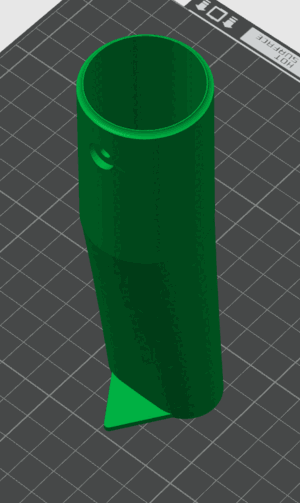

#1		Standard	1-side-mast-mount.stl
#2		Standard	2-bottom-pass-through.stl

Sunbank

For solar-powered installations, the anemometer sits onto the Sunbank. The Sunbank is made of three parts.

In the southern hemisphere, the Sunbank is oriented so that the solar cells face north: print the southern hemisphere vane as part #1 of the anemometer head.

Material: PETG  ·  Print time: 5h30  ·  Filament: 140 g

Part Number	View	Printing Settings	File
#1		Standard	1-solar-body.stl
#2		Standard	2-bottom-cover.stl

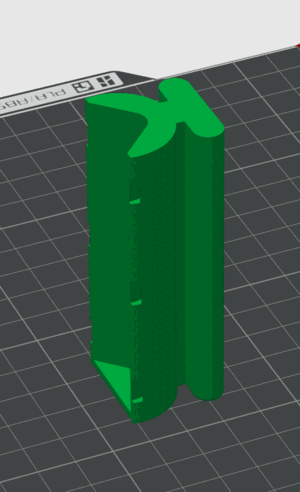

#3		Standard	3-dock-vgroove.stl
